I work with small companies & individuals to produce their designs as solid models with fabrication drawings & DXF files for CNC work. Prototype machinery in steel, metal alloys, GRP and composite materials. 3d designs can be produced from sketches, models or detail drawings .
Engineering prototype design, from concept to fabrication
These have formed the vast majority of my work over the last 10 years. Prototype blue prints & fabrication drawings for existing or bespoke plant & machinery. From small individual parts to full machines. These are just a few of the many projects I have worked on over the years & some in progress.
Contact: e-mail: projects@cad-technician.co.uk or Tel: 07541 313 059 (GMT)
Electric Propulsion Unit
Below is the propulsion & stern assembly for an inland barge that I am currently designing

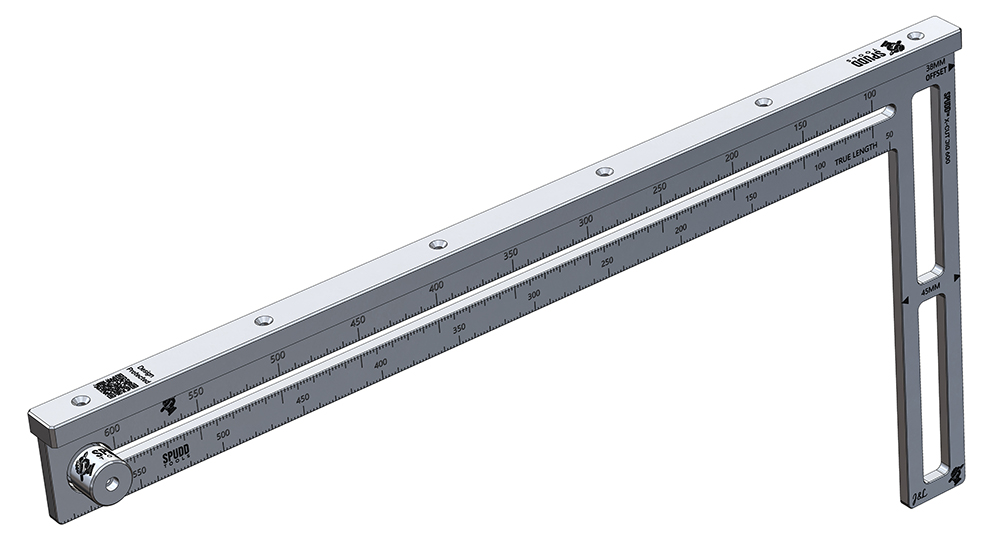

A saw square. Thank you SPUDD tools for letting me show you their latest product.
The Wind Turbine below was fitted with a shorter tower by modifying the top Yaw ring assembly & foundation base with new flanges. These projects are ongoing. Thank you Cerberus Energy.
Turbine & Tower
Tower Head & Yaw Ring
Foundation Ring
Sheet metalwork, fabrication drawings and DXF files for laser cutting.
Below is a machine for orientating cotton buds for a packing line.
Working prototype
A labeller for pharmaceutical, manufacturing & food production.
Composites, formers, GRP & injection mould models. Below is a timber sub-frame for a GRP barrel window. Architectural Mouldings Hull.
Composite roof bulls eye window & roof
Plywood & timber core design
GRP Encapsulation
Small bespoke engineering projects
Parallel Motion Linkage pump
As you can see our experience covers a wide range of areas. If you require professional CAD services for your own projects, please get in touch.
