With 40 years experience in construction and engineering, I produce technical drawings and 3d models, for Architectural, M.E.P. and Engineering disciplines, often combining them together. Working direct for a client or as part of a small team. Both throughout the UK & worldwide via the internet using online storage with Microsoft Teams for meetings.
My portfolio varies greatly, from small individual property renovations, to large commercial construction projects for the food industry & utilities. P&ID drawings. MEP, electrical and mechanical containment layouts. Prototype blue prints & fabrication drawings for existing or bespoke plant & machinery. Service routing, schematics, GA’s & RCP’s. DXF files for CNC cutting.
Commercial Building Design
Many of my projects are commercial building footprints. I start by creating a model of the building from existing drawings or a site survey. Then working with the client or their development team fit the shell out with office space, canteen, workshops & storage. These projects can be anything from a basic portal unit to a working factory. Alterations to existing facilities can be scheduled & planned in phases, repurposing one area for a short period while another undergoing major works therefore minimising disruption.
Large complex projects are not a problem
Projects are uniquely flexible, driven by the requirements of my clients. This web-site shows a cross-section of past projects and is by no means exhaustive. Please click on GALLERY to see more.
I am based in North Cave, Yorkshire 1/2 hr from York, with clients across the whole of the UK & many parts Europe.
Architectural CAD Technician
Architectural CAD drawings and 3D visuals for self builders, architects, interior designers and construction companies.
2D DWG drawings. Planning application and building control, construction plans, elevations, cross-sections & steelwork detailing.
My clients have complete control of their projects from start to finish.
Please click on the link below for more information.
+ more info on Architectural CAD Services
Access Gantries & Industrial Platform Fabrication Drawings
Each part in the gantry below apart from the steps & ladders, use the same external blue print sketch. Any change to the blue print sketch & any part that references it will also update, ensuring all the bolts holes & end connections still fit.
3D CAD assembly with detail & fabrication drawings for gantries & access platforms. DXF files for CNC cutting.
C.H.P Combined Heating & Power Systems
This is a specialist area that I have been working in for the last 5 years.
M.E.P. (Mechanical, electrical & plumbing) 3d systems & drawings
C.H.P. ( combined heat & power ) systems, energy centres, commercial / industrial estates, hospitals & utilities.
Simplified, a combined heat & power systems usually comprise of a water treatment system, a very large industrial generator & L.T.H.W boilers. The generator provides power to the facility & an over production is sold back to the grid. Waste heat produced by the engine & exhaust is harnessed using a series of heat exchanges & used to preheat the water going into the boilers that supply hot water & heating to buildings on the estate.
More information on C.H.P systems can be found on my new website www.cad-drawing-service.uk. Please click on green bar below if you want to visit.
Mechanical. Electrical. Plumbing. (M.E.P.)

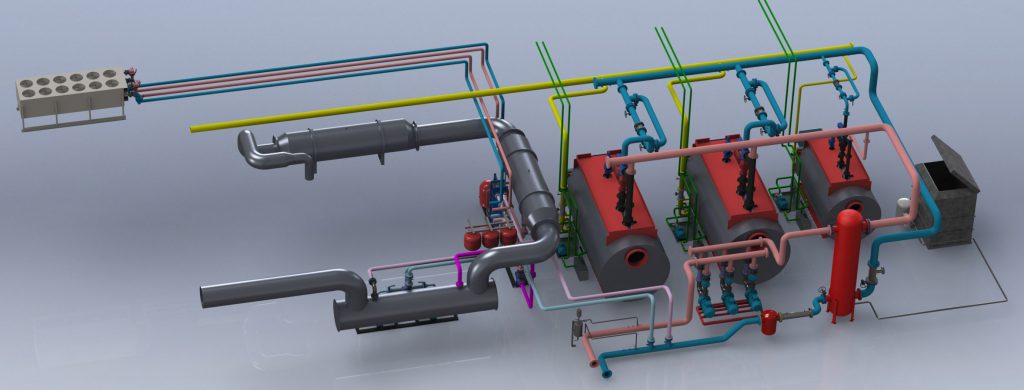

MEP’s, GA’s, RCP’s, schematics & P&ID drawings for Contractors, utilities and mechanical installations. Below is a 3d model of the service under-croft Reading hospital I surveyed & compiled for a Rewco industrial boilers project.
Please click on the link below for more information.
+ more info on M.E.P. Drawings & Services
Sheet metalwork enclosures designed around new or existing machinery.
Cabinets and housings for encapsulating plant, machinery and electrical systems. Designed completely in sheet metalwork or a combination of steel or aluminium section. PDF engineering drawings are accompanied with DWG’s and/or DXF files for laser cutting & enhanced detail.
Sheet metalwork and encapsulation cabinets.
+ more info on Sheet Metalwork CAD Services
Prototype & Engineering CAD Service
Prototype design & engineering assemblies. All the CAD drawing services you will need to have a project designed & fabricated.
- Engineering drawings
- Prototype 3D models
- Fabrication drawings
- DXF files for CNC cutting
- Sheet metal drawings
+ more info on prototype & engineering CAD Services
I charge £28.50 per hr with discount for larger projects. Site visits & surveys within the UK.
